Measure
The probe records cellular KPIs, Wi-Fi beacons, RF spectrum, GPS position and vibration every second while the vehicle works.
Catalog / RF & wireless measurement / HW-RF01
HW-RF01Hardware · RF & wireless measurementFeatured In development

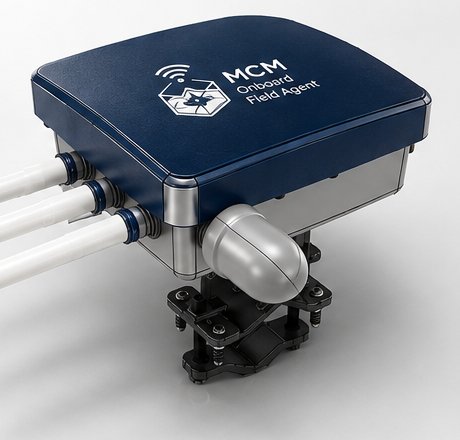

MCM OFA LTE/5G Measuring Unit

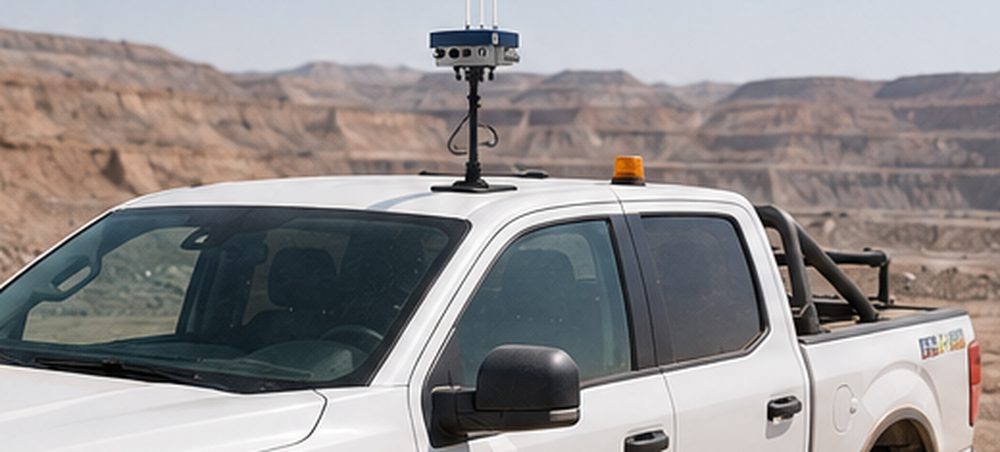

MCM OFA (Onboard Field Agent) is the hardware probe of the MCM suite. Installed on haul trucks, service vehicles or fixed points, it measures wireless coverage on every shift without an operator, so the network is evaluated continuously in real operating conditions instead of during occasional drive tests.
Key capabilities
What it does.
- 01
Autonomous 24/7 measurement from every vehicle, without an operator
- 02
LTE/5G (RSRP, RSRQ, SINR, cell ID), Wi-Fi scan and RF spectrum in one probe
- 03
1 Hz GPS tagging of every sample, plus triaxial vibration sensing
- 04
Offline-first buffer with automatic batch sync to MCM Center
How it works
Three steps from field to decision.
Step 1
Step 2
Buffer
Data is stored locally when there is no coverage, then sent in compressed batches as soon as the link returns.
Step 3
Analyze
MCM Center turns each journey into heatmaps, blackout maps and automatic diagnostics for the whole fleet.
Technical highlights
- Housing

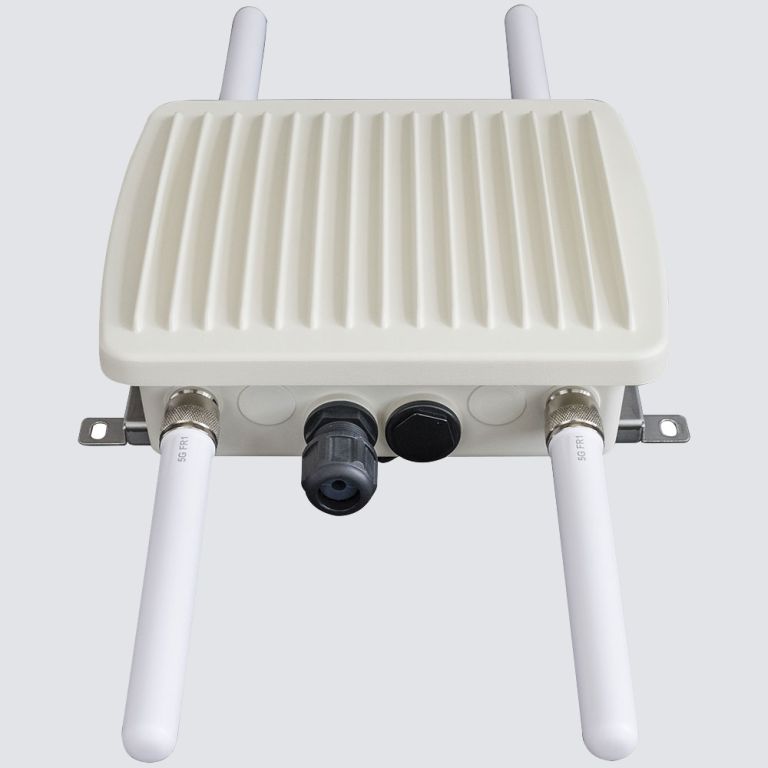

- IP67, vehicle mount, 12/24 VDC
- Cellular
- LTE / 5G NR SA/NSA
- Spectrum
- 240 MHz to 6.1 GHz sweeps
- Positioning
- GNSS, 1 Hz
- Local buffer
- Up to 500 MB, store-and-forward
- Status
- In development
Indicative specifications. Final configuration, enclosure and certifications are confirmed per project.
Typical applications
- Continuous coverage monitoring of mobile fleets
- Root-cause analysis of vehicle communication failures
- Haul road roughness and impact mapping
Industries
MiningPorts & logisticsTelecom & private networksRail & transport
Gallery
In the field.
Sales model
100% B2B. ITTC products are supplied through specialized partner companies in each vertical. Contact us to find the partner for your sector, or to become one.
